UMS Web API

Description

UMS Web API opens up for exporting data from UMS system via API. Therefore it is not limited to a certain supplier.

You as customer can control data-source and access to the API, and the supplier can via the build-in swagger configurate their API connection.

Prerequisites and needed modules

Purchase requirements :

• UMS Web API module

Technical requirements :

• 1 x MS SQL database (additional to the existing UMS Database)
• 1 x IIS Web server (existing UMS Web server can be used to host API site) - module Websocket Protocol must be enabled on IIS for site to work
• 1 x SSL Certificate for the API Site (eg. umswebapi.yourdomain.dk)
• Internal and External DNS record to access site from Internet

Software requirements :

• ASP.Net Core Runtime Hosting Bundle - https://dotnet.microsoft.com/en-us/download/dotnet/8.0
•

Installation

Create a new site on IIS server. Name it accordingly (e.g umswebapi.yourdomain.dk)

Add SSL Certificate to site (encrypted transmissions)

Create DNS record(s) (internal / external)

Download latest version of the Web.API.installer file here : downloads.inlogic.dk - /downloads/Products/Web.Api/

Install application on IIS server

Restart IIS

Configuration

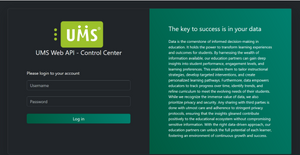

Go to UMS Web API URL in browser (e.g umswebapi.yourdomain.dk)

Create SuperAdmin user @ 1. logon

Insert connection string to UMS Web API database (e.g Server=[myServerAddress];Database=[myDataBase];Username=[sql-username];Trusted_Connection=True/False;TrustServerCertificate=Yes;)

to be continued ...
