Office 365

From UmsWiki
Jump to: navigation, search

Our Office 365 SharePoint Portal is a dedicated solution for school, which want an easy-to-use learning portal. Students and teachers are often presented with advanced and complex solutions that does everything they need and then some and as a result, they are difficult to use. We have decided to do things differently and therefore the Office 365 SharePoint Portal gives you the features you need to get the most out of SharePoint. Nothing more, nothing less. The portal is simple and easy to use. This way you avoid confusion and having to navigate yet another complex system. In terms of design, you have two options: the portal can use our standard skin, as pictured above, or our second skin, which we made for primary schools.

Prerequisites

Module requirements

UMS

Testing after setup

Users get created in Office 365

What to have ready

Install latest version of Windows Management Framework

Then run these powershell commands

Install-Module MSOnline

Install-Module AzureAD

Is any physical item required

Should third party be contacted

Installation

Office 365

Enter Admin credentials for a service account with administrator privileges to access Office 365.

Office365 Setting.jpg

Credentials

User name

Enter a UPN for office 365

Password

Enter password for the user

Domain

Enter the domain that you want the users and groups to have when they are created. E.g. <Username>@<Domain>

Users

Login

Choose what the users shall use to log in to Office365.

Mail Address

Choose what to use as the users mail address.

Enable password never expires

When marked the password will never expire for the users.

Disable strong password

Use this to bypass the default password complexity.

Users are created through third party program

This normally means ADFS is used to synchronize users

Forward mail to on premise mail server

This will forward the users Office 365 mail to the primary mail address from AD (If user does not have a proxy address it will read it from the mail attribute)

Use Active Directory for info

This tells UMS to take Department, Title and Organization from AD instead of AD Attributes in UMS.

Set License and usage location

This will tell UMS to update license and usage location when creating a user

Disable users

When marked the users will be disabled when they are no longer attending classes.

Delete users

Choose if users are to be deleted after grace period has ended.

Keep inactive before deleting x days

Specify a grace period where users are disabled.

Hide from address list

Hide the newly created item from address list.

Mailbox language

Specify which language is to be default for the users.

Mailbox time zone

Specify which time zone is to be default for the users.

Calendar Rights

Set the calendar rights on a user when he is created

Calendar object UPN

Specify the UPN to put on the users calendar with the rights specified below

Template groups

Maintain security group

This will create the security group entered in the field template security group in the destination node in the template settings.

Maintain extra groups

This will create all the groups from the extra groups template tab. All users will have direct group memeber ship.

Distribution lists

Maintain lists

Mark this to create distribution groups in Office 365. The groups will be created, updated and deleted if this is specified.

Delete lists

Mark this to delete distributions groups when they are no longer active in the administrative system. Check the data export manuals too when this happens

Delete unused lists after x days

Specify in days how long the distribution groups are to be kept alive in Office 365 before deletion.

Only senders inside my organization

With this marked only users in the domain will be able to send to distribution groups created by UMS.

Disabling this will allow the groups to be visible in Onedrive and Classroom

Picture settings

This takes the picture privacy setting that the user has set into consideration. The picture will not be uploaded if the user has chosen not to allow his picture to be shared. The picture will not be removed again if it has been uploaded.

Student picture library

Define where the pictures are for the students that uses this template. If this is not set, no pictures will be uploaded to Office 365.

Employee picture library

Define where the pictures are for the employees that uses this template. If this is not set, no pictures will be uploaded to Office 365.

Timetable

Maintain

Mark this to create timetable blocks in Office 365. They will be created, updated and deleted.

Delete old

Mark this to delete old timetable blocks from calendars.

Room setting

Create rooms with timetable blocks.

Manage


Room displayname

Prefix

Text that can be added to the start of what is chosen in Generator.

Generator

Choose what is to define the room.

Suffix

Text that can be added to the end of what is chosen in Generator.

Resulting displayname

Summary of the chosen display name as it will be shown in Office 365.

Set rights to rooms

Sets the rights on rooms when created

This has to be a Distribution Group Otherwise it won't work


Owner

Users will be able to create, read, modify and delete all items and files, and create sub-folders. As the folder owner, they can change the permission levels others have for the folder. (Does not apply to delegates.).

Publishing Editor

Users can create, read, modify and delete all items and files, and create sub-folders. (Does not apply to delegates.).

Editor

Users can create, read, modify and delete all items and files..

Publishing Author

Users can create and read items and files, create sub-folders, and modify and delete items and files they create. (Does not apply to delegates.).

Author

Users can create and read items and files and modify and delete items and files you create.

Nonediting Author

Users have full read details. Can create items and delete own items. Folder visible.

Reviewer

Users can read items and files only.

Contributor

Users can create items and files only. The contents of the folder does not appear. (Does not apply to delegates.).

Note With author or editor permissions, a delegate has send-on-behalf-of permission. Sent messages contain both the managers and delegates names. Message recipients see the managers name in the Sent On Behalf Of box and the delegates name in the From box.

Define rooms to be created

Specify the rooms to be created based on a filter. If nothing is entered, every room will be created.


Room number and Room name

Can be found in the skemabrikker_rooms table in SQL.

Usage location

Choose which country that the users are located in.

Re-License Users

Pushing this button will cause all the users created with this setting to be relicensed in Office 365.

License type

Choose which license type to apply to the users. Remember to check that there is sufficient amount of licenses available.

Office 365 Licenses

Lists of features contained in the chosen license type.

PowerShell command

Gives you the commands to connect to the tenant with PowerShell

Office 365 SharePoint site setting

This will create SharePoint sites


Site settings

Automation type

Full: Means that site maintenance will be fully automated.

Remove learner method

Deleted in AD

Users will be removed from site when they are not active in UMS anymore

Finished on activity/course

Users will be removed when they have finished with the course.

Delete sites

Auto delete

Sites will be delete when the last student has left the site

Manual Delete

Sites will not be deleted by UMS. This has to be done by an administrator

Send mail to teacher(s)

Send mail notification to teachers when they are attached to a site.

Create x days before

Choose how many days before start that the sites are to be created.

Delete x days after end

Choose how many days after end that the sites are to be deleted.

Teacher rights on sites

Rights the teacher will have on the site when attached.

Learner rights on sites

Rights the student/learner will have on the site when attached.

Check if group rights match

When UMS looks for UMS-groups on the site, it will do so based on two criteria’s.

The correct rights and the correct name. Unchecking this will disable the first criteria and only look for a group with the right name. (This is when users change the UMS-group rights on a site manually)

SQL Groups

Members of these groups will be attached to all sites created with this setting as teachers


Group name

This can only be a group that is found in UMS

You get a list of these groups by running this SQL command:

Select Distinct Aktivitet As Activity From Students Order By Activity

Activity Sites

Do not create

It will not create any sites based on activities.

LMS has to be checked

The field Aktivitet_LMS in the students table has to be True. (Look in the documentation for the specific administrative system to see how this is set)

Based on template filter

Create sites based on a filter that is specified per template.


All

Create all sites.

Title

Title of the site. Changing this after a site has been created will cause it to be updated.

Description

Description of the site. Changing this after a site has been created will cause it to be updated.

Search filter and criteria

This will enable you to concatenate sites that would have been created as to or more sites to be created as one site.

Remarks

This is just for description purposes.

Filter

The SQL like filter (regular expression). If an activity matches, it will be subject to the settings below in semester roll

Semester roll

Use replace string with empty

This will replace a section of the site with an empty string.

Start index

Determine where to start in string to remove.

Length

How many characters will be removed from the string.

Add activity short description to node ID

This will add the field Kort_Betegnelse (Short Description) from the students table to the node id.

Node id is the URL.

Examples

If you have three activities named English1, English2, English3 and you only want one SharePoint site.

Set the settings as shown below


This filter ensures that it is only applied to activities that matches this SQL sentence.

Course Sites

Course URL’s will always be created as activity_course.

Do not create

It will not create any sites based on courses.

LMS has to be checked

The field Skolefag_LMS in the students table has to be True. (Look in the documentation for the specific administrative system to see how this is set)

Based on template filter

Create sites based on a filter that is specified per template.


All

Create all sites.

Title

Title of the site. Changing this after a site has been created will cause it to be updated.

Description

Description of the site. Changing this after a site has been created will cause it to be updated.

Search filter and criteria

This will enable you to concatenate sites that would have been created as two or more sites to be created as one site.


Remarks

This is just for description purposes.

Course Filter

The SQL like filter (regular expression). If an activity matches, it will be subject to the settings below in semester roll.

Semester roll

Use replace string with empty

This will replace a section of the site with an empty string.

Start index

Determine where to start in string to remove.

Length

How many characters will be removed from the string.

Activity Filter

The SQL like filter (regular expression). If an activity matches, it will be subject to the settings below in semester roll

Semester roll

Use replace string with empty

This will replace a section of the site with an empty string.

Start index

Determine where to start in string to remove.

Length

How many characters will be removed from the string.

After you have created the Office 365 setting you put in on a template.


Setting: This will created the users with on this template in Office 365 with these settings

SharePoint settings: Sites created with setting. If this is not specified no activities/courses on this template will be created.


Site URL: Which site collection is used when creating sites

Language: The default language of the created site

Course Template

Standard SharePoint: Use a standard template from SharePoint

Course template: Enter a name of a template that resides in the site collection. If nothing is entered it will default to the Team site template

UMS SharePoint Portal: Create sites based on the UMS SharePoint Portal product

OneNote Class Notebook setting

Choose a Class Notebook setting. This will create a Class Notebook created in the SharePoint site.

SQL Groups

Members of these groups will be attached to all sites created with this setting as teachers


Group name

This can only be a group that is found in UMS

You get a list of these groups by running this SQL command:

Select Distinct Aktivitet As Activity From Students Order By Activity

OneNote Class Notebook setting

Define settings for OneNote Class Notebooks.

OneNotesections SharePoint.png

Sections

Define the section the Class Notebook will be created with. Students that are attached to this Class Notebook will have these sections.


Use Name instead of title for Notebooks (Last part of URL)

This will make the title of the NoteBook be the same as the last part of the URL of the SharePoint site that the NoteBook is created in. It never changes unless this is unchecked.

Never update Notebook title after creation

The NoteBook will never update the title after it has been created, even though the SharePoint site changes title. it will be created with the title that SharePoint site has at createin time.

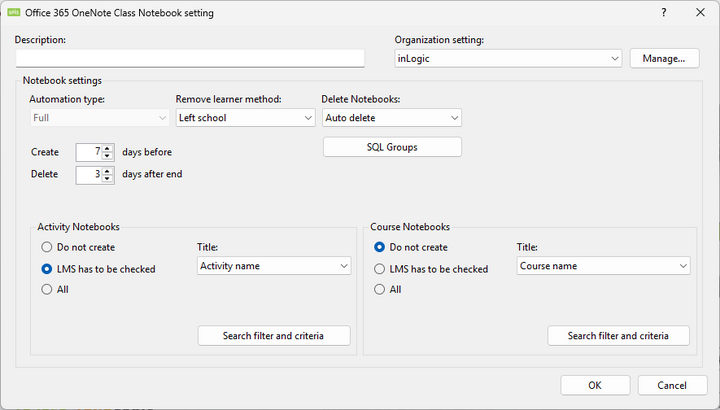

OneNote Class Notebook setting


Notebook settings

Automation type

Full: Means that Notebooks maintenance will be fully automated.

Remove learner method

Deleted in AD

Users will be removed from Notebooks when they are not active in UMS anymore

Finished on activity/course

Users will be removed when they have finished with the course.

Delete Notebooks

Auto delete

Notebooks will be delete when the last student has left the Notebook

Manual Delete

Notebooks will not be deleted by UMS. This has to be done by an administrator

Send mail to teacher(s)

Send mail notification to teachers when they are attached to a Notebook.

Create x days before

Choose how many days before start that the Notebooks are to be created.

Delete x days after end

Choose how many days after end that the Notebooks are to be deleted.

SQL Groups

Members of these groups will be attached to all Notebooks created with this setting as teachers


Group name

This can only be a group that is found in UMS

You get a list of these groups by running this SQL command:

Select Distinct Aktivitet As Activity From Students Order By Activity

Activity Notebooks

Do not create

It will not create any Notebooks based on activities.

LMS has to be checked

The field Aktivitet_LMS in the students table has to be True. (Look in the documentation for the specific administrative system to see how this is set)

Based on template filter

Create Notebooks based on a filter that is specified per template.


All

Create all Notebooks.

Title

Title of the Notebook. Changing this after a Notebook has been created will cause it to be updated.

Search filter and criteria

This will enable you to concatenate Notebooks that would have been created as to or more Notebooks to be created as one Notebook.


Remarks

This is just for description purposes.

Filter

The SQL like filter (regular expression). If an activity matches, it will be subject to the settings below in semester roll

Semester roll

Use replace string with empty

This will replace a section of the Notebook with an empty string.

Start index

Determine where to start in string to remove.

Length

How many characters will be removed from the string.

Add activity short description to node ID

This will add the field Kort_Betegnelse (Short Description) from the students table to the node id.

Node id is the URL.

Examples

If you have three activities named English1, English2, English3 and you only want one Notebook.

Set the settings as shown below


This filter ensures that it is only applied to activities that matches this SQL sentence.

Course Notebooks

Course URL’s will always be created as activity course.

Do not create

It will not create any Notebooks based on courses.

LMS has to be checked

The field Skolefag_LMS in the students table has to be True. (Look in the documentation for the specific administrative system to see how this is set)

Based on template filter

Create Notebook based on a filter that is specified per template.


All

Create all Notebooks.

Title

Title of the Notebook. Changing this after a Notebook has been created will cause it to be updated.

Search filter and criteria

This will enable you to concatenate Notebooks that would have been created as two or more Notebooks to be created as one Notebook.


Remarks

This is just for description purposes.

Course Filter

The SQL like filter (regular expression). If an activity matches, it will be subject to the settings below in semester roll.

Semester roll

Use replace string with empty

This will replace a section of the Notebook with an empty string.

Start index

Determine where to start in string to remove.

Length

How many characters will be removed from the string.

Activity Filter

The SQL like filter (regular expression). If an activity matches, it will be subject to the settings below in semester roll

Semester roll

Use replace string with empty

This will replace a section of the Notebook with an empty string.

Start index

Determine where to start in string to remove.

Length

How many characters will be removed from the string.

After you have created the Office 365 setting you put in on a template.


Setting: This will created the users with on this template in Office 365 with these settings

OneNote Class Notebook settings: Notebooks created with setting. If this is not specified no activities/courses on this template will be created.


Site collection URL: Which Notebook collection is used when creating Notebooks

Language: The default language of the created Notebook

Sections

Define the section the Class Notebook will be created with. Students that are attached to this Class Notebook will have these sections.


SQL Groups

Members of these groups will be attached to all Notebooks created with this setting as teachers


Group name

This can only be a group that is found in UMS

You get a list of these groups by running this SQL command:

Select Distinct Aktivitet As Activity From Students Order By Activity

Organization Settings


Site settings

Description

Add a description to be able to identify the account.

SharePoint administration URL

URL of the SharePoint administration site for the tenant.

Credentials settings

Username

Username used to connect to SharePoint.

Password

Password used to connect to SharePoint.

Technical settings

FAQ

Office 365 Licens (Unable to assign this license) How to troubleshoot this error

Error message from UMS Job log (LiveAtEdu)

Error = Unable to assign this license

Set-MsolUserLicense -UserPrincipalName 'khhi3275@ums.dk' -AddLicenses "inLogic:STANDARDWOFFPACK_IW_STUDENT" -LicenseOptions $MyO365Sku

Error = Unable to assign this license.

29-01-2019 13:23:00 -    at Utilities.Office365.SetLicenseForUser(String UPN, List`1 Licenses, SqlConnection& LocalSQLDBConnection)

  at LiveAtEdu_Sync.LiveAtEdu_Sync.PerformFunctionUserSettings(String SQLStr, UserFunctions Office365Function, MethodInfo StackFrame)

29-01-2019 13:23:00 - khhi3275- UPN = khhi3275@ums.dk

29-01-2019 13:23:01 - (UpdateLicenseInfoOnUsers) Error. Could not set license for user - khhi3275@ums.dk

  • Try adding the same licenses manually to a single user in office365. You could see if that is possible
  • The error shows that it is not possible to put the same licenses together
    Licens Error.png

  • Change your licenses in UMS and run the LiveAtEdu job again

Groups

How to get groups visible in OneDrive and Classroom

Remove the checkbox from Only senders inside my organization

Why do I not get the site created?

  1. Activity
    1. Is there a user on the activity with a primary template that has an office 365 setting attached
    2. Is the flag Aktivitet_LMS = True
  2. Course
    1. Is there a user on the course with a primary template that has an office 365 setting attached
    2. Is the flag Skolefag_LMS = True

Maintenance

portal.office.com

Teams

Go to Office Portal and login with your admin account( the same UMS uses).

Select settings Services and add-ins and click Teams.

Activate Teams for a license type, ie. Guest or Education-Student
